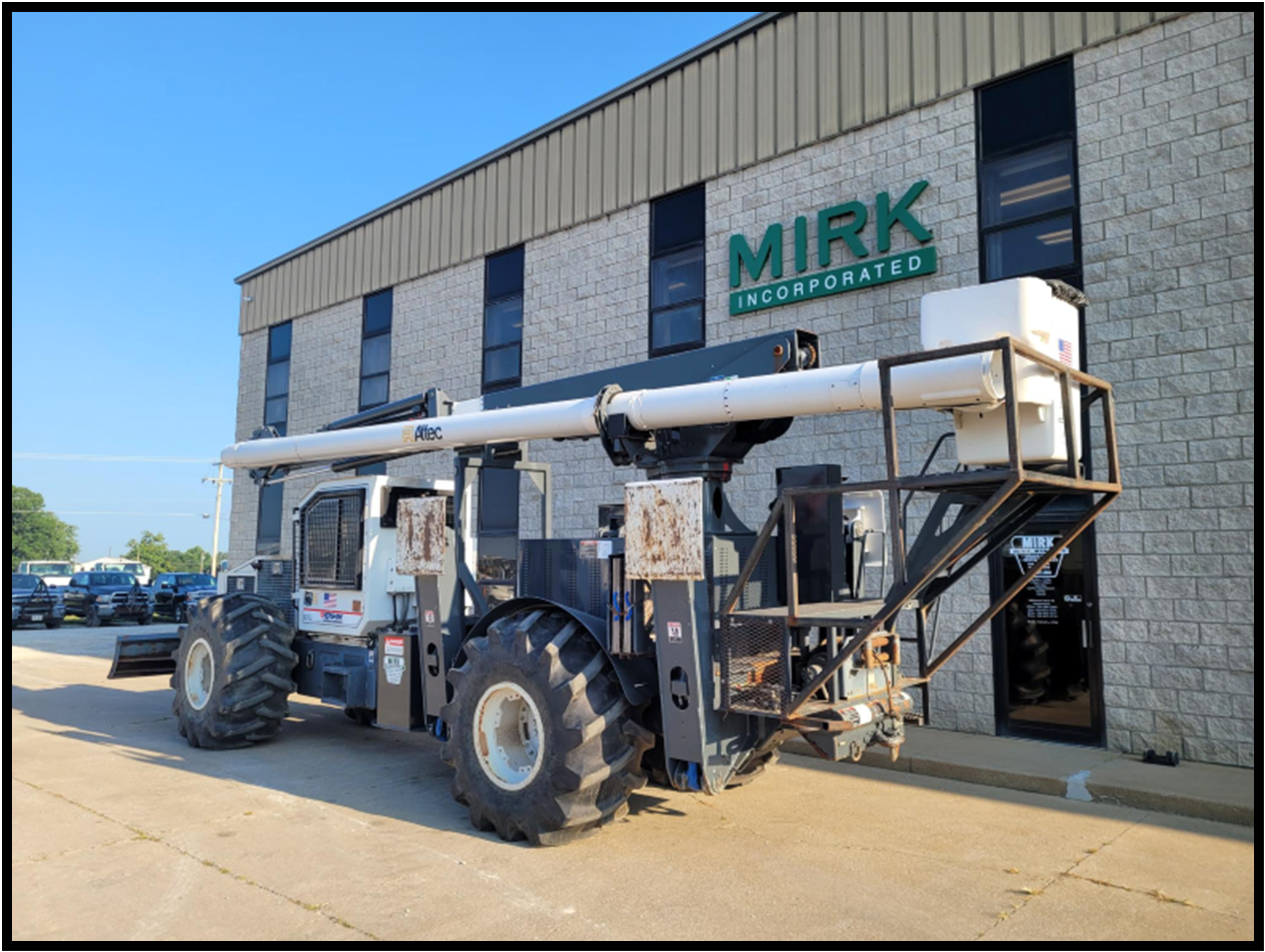

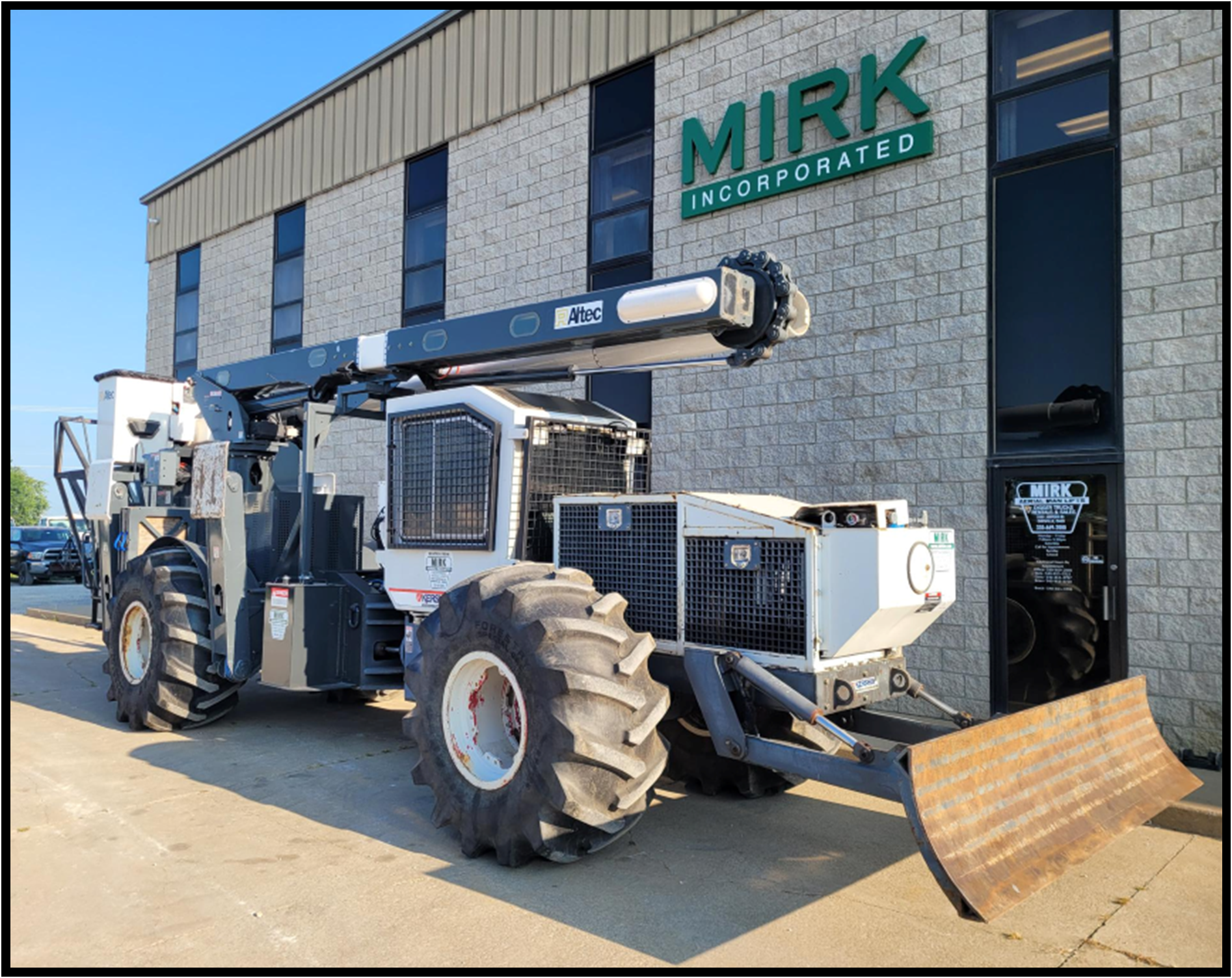

ATC –SKIDDER CARRIER

KERSHAW ATC7 SKIDDER

ARTICULTING  SKIDDER  CARRIER

S.N.  ATC7-111-16

CATERPILLAR MODEL C 4.4  DIESEL ENGINE

127 HORSE POWER

ALL WHEEL DRIVE  FULLY HYDROSTATIC WITH HI AND LO RANGES WITH DIFFERENTIAL LOCK

28L-26 FORESTRY  TIRES

10 HOLE BUDD STYLE WHEELS (REVERSIBLE)

HYDRAULIC FRONT DOZER BLADE

REAR MOUNTED  DP MANUFACTURING WINCH

DUAL 40 GALLON DIESEL TANKS



AERIAL DEVICE:

ALTEC OVERCENTER  AERIAL  DEVICE

MODEL:  LR760-E70 AERIAL DEVICE

S.N. 0916FF5454

70’ TO BOTTOM OF BUCKET

75’ OF WORKING HEIGHT

INSULATED OVER CENTER UPPER BOOM

LOWER BOOM WITH INSERT

SINGLE MAN BUCKET  ( 350 LBS. CAPACITY)

HYDRAULIC TOOL CIRCUIT @ BUCKET (2)

OUTRIGGERS (4)

CONTINUOUS ROTATION

SINGLE HANDLE  UPPER CONTROLS

LOWER OVER RIDE CONTROLS



BODY:

WIDTH: 8’ 6” TRANSPORT WIDTH  (WHEELS DISHED IN)

WIDTH: 9’ 6”  OFF ROAD (WHEELS DISHED OUT)

HEIGHT : 11’ 9”

LENGTH :  31’ 6”  OVERALL

WEIGHT : 38,000 APPROX.
