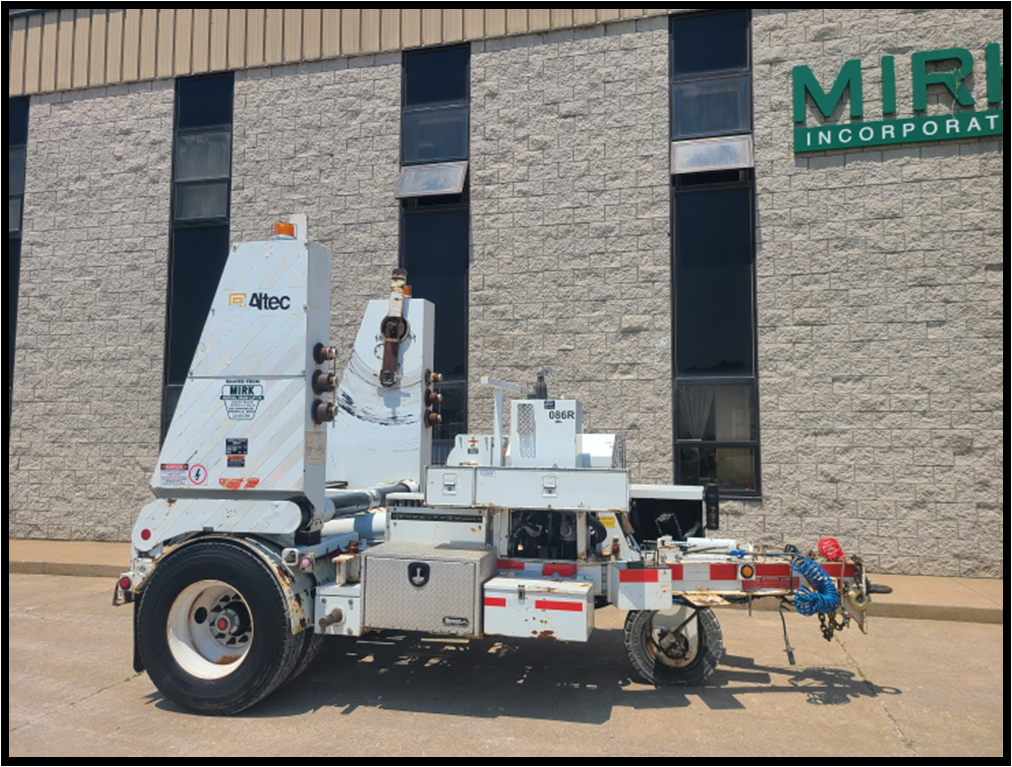

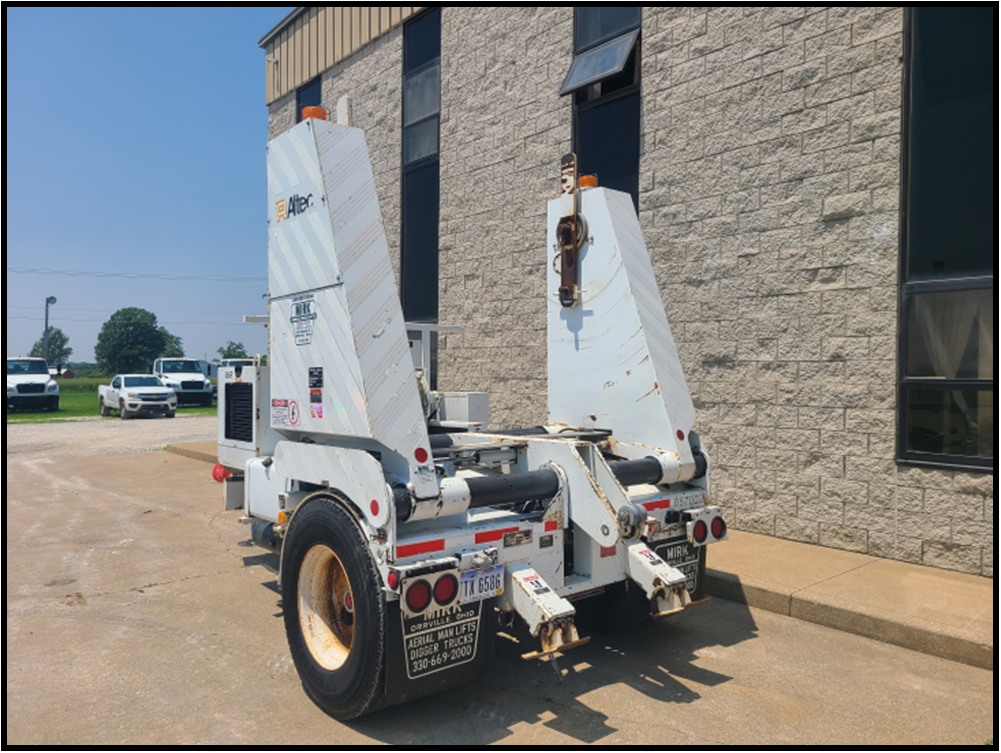

SELF LOADING, TRAILER MOUNTED ARM-DRIVE UNDERGROUND CABLE HANDLER

ALTEC INDUSTRIES

MODEL:  AD-108

SERIAL #  90-16111875-04-10

V.I.N.#  4HACB1K01AS000017

G.V.W.R.  26,500 LBS.

MAXIMUM PAYLOAD:  14,000 LBS.

MAX. REEL DIAM.:  108 INCHES

MAX. REEL WIDTH:  74”

MAX. REEL SPEED:  12 R.P.M.

MAX. REEL DRIVE TORQUE:  150,000 IN.-LBS.

AUTOMATIC REEL BRAKE

2 3/4” DIAM. ARBOR SPINDLES W/ ADAPTERS

2   HYDRAULIC REAR OUTRIGGERS

HYDRAULIC TONGUE JACK

OPTIONAL RADIO REMOTE CONTROL



STANDARD FEATURES

KUBOTA  DIESEL ENGINE

UNIT IS SELF MANEUVERABLE

20 GALLON FUEL TANK

11R 22.5  RADIAL TIRES  (DUALS)

10 HOLE BUDD WHEELS

OIL BATH HUBS

3” EYE ADJUSTABLE PINTLE HITCH

SAFETY CHAIN EYES

7 PRONG LARGE (ROUND) TRAILER PLUG

AIR TRAILER BRAKES



DIMENSIONAL DATA:

OVERALL WIDTH:  102” WIDE

OVERALL LENGTH:  17’ 6” LONG

OVERALL HEIGHT (UNLOADED):  10’ 9”

GROSS TRAILER WEIGHT W/O REEL: 12,500 LB

TONGUE:  2,630 LB.

AXLE:  9,870 LB.

HYDRAULIC TOOL CIRCUIT WITH HOSE REEL

(2) AMBER STROBE LIGHTS

ALUMINUM TOOL BOX  CURBSIDE

ADAPTERS SIZED: 3.5”……. 4”……. 5”
